| Advance series 60M3/Hr to 90M3/Hr |
| Model |
Advance - IP1060 |
| Type |
Inline bins |
| Capacity |
60 M3/Hr. |
|
| |
 |
|

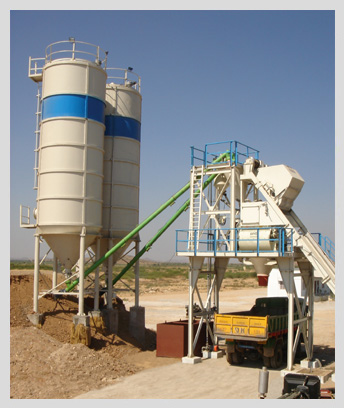

Based on the hugely successful Vectra Series, the latest high output Advance Series Concrete Batching and Mixing plant shares a high degree of component interchangeability with its parent design. The Advance unit is based on a robust ‘space frame’ design and is available with an almost limitless choice of cement storage options, 4 to 6 standard aggregate storage extensions (alternative storage extensions available on request), with a choice of feed options and wet, dry or combination batching. The Advance series has already proven popular with many leading Readymix Concrete companies and civil engineering contractors in India, by providing an efficient, competitively priced and versatile unit that requires minimal groundwork and is easy to install. This optimum design will also satisfy today’s strict planning and environmental regulations. Standard design features include generous service access, an extensive range of customer options, ease of transport and site relocation, high productivity, precision weighing technology - all from Polytech, India’s leading Concrete Batching Plant manufacturer. The plant is driven by the COMMANDbatch Batching Software (Turn to page 29 to know more about COMMANDbatch). |
|
|
|
| Specifications |
| Aggregate storage capacity / M3 |
60 - 192 |
| Number of aggregate storage compartments |
4/5/6 |
| Cement Storage capacity / tonnes |
50 - 500 |
| Number of cement Storage compartments |
Optional |
| Aggregate storage facility |
Low level bins |
| Cement storage facility |
Remote silos |
| Mixer |
Pan Twin Shaft |
| Dry batching |
- |
| Maximum aggregate scale rating - kg |
3000 |
| Maximum cement scale rating - kg |
700 |
| Control system manual |
Fully Computerized Batching System with Manual option |
| Output/M3 per hour |
60 |
| Plant designation |
Skid mounted |
|
|
| |
 |
| |

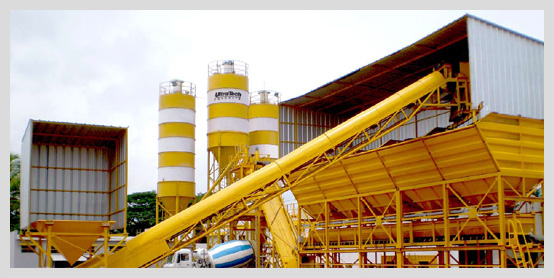

Plant installation at Bangalore
Capacity: 80 M3/Hr.
ULTRA TECH Cements Ltd. |
|
|
|
|
| |
|
| |
|
|
| |
