| PaceBatch Series |
MODEL |
PaceBatch 30 DL/ PaceBatch 30 SCB |
| CAPACITY |
30M3/Hr. |
|
| |
 |
| |
| Star type & the radial scraper arrangement in the batching plant facilitates a large aggregate storage capacity, compensating to the irregularity in aggregate supply eventually not affecting the Mixer operation & down time. Reasonable height of partition walls or starbins helps in stocking optimum capacity of aggregates. The discharge opening (batching gate) are located at the bottom in an horizontal plane. This provides a storage angle of partition up to 210° , hence a small floor space is required for a given storage area. The cement silos are strategically placed on either side of the Mixing plant or in the front. Each compartment has a pneumatically operated discharge gate enabling controlled flow of aggregates into the skip bucket. The skip along with weigh frame assembly suspend on load cells provides precise aggregate & sand weigh batching. Feature of dual speed winch drive for the skip bucket reduces mix cycle time. |
|
| |
| Specifications |
| Parameter |
PaceBatch 30DL |
PaceBatch 30SCB |
| Outut-M3/Hr. |
30 |
30 |
| Aggregate Storage |
Star Batcher |
Compartment Batcher |
| No. of compartments |
4 |
4 |
| Storage capacity - M3 |
200 |
40 |
| Scraper Radius - mts |
10 |
- |
| Mixer |
Pan |
Pan |
| Mixer Capacity |
0.5 M3 |
0.5 M3 |
| Mixer Time - secs |
30 |
30 |
| Cycle Time - secs |
60 |
60 |
| Mixer Motor -kW |
22 |
22 |
| Aggregate Weighing |
2 Load cells |
2 Load cells |
| Skip Capacity - lts. |
750 |
750 |
| Cement / Water Weigh Batcher -kgs |
500 |
500 |
| Cement Screw Conveyor -TPH |
20 |
20 |
| Admixture Dosing Pump -LPM |
18 |
18 |
| Controls |
Fully automatic |
Fully automatic |
|
|
| |
| Compact shipment |
Space saving |
Cost effective |
|
| |

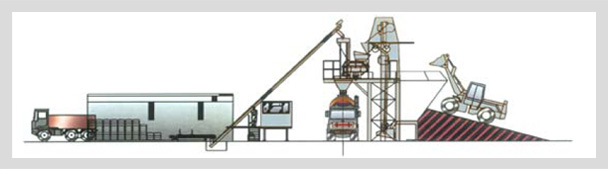

| The complete plant comprises of various modules for shipping purposes. The Pan Mixer and the combined cement/ water weigh hopper are folded back into the internal compartment of the machine. This facilitates a compact shipping unit within container dimensions. |
| |

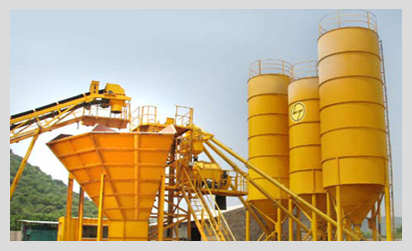

| PACEBATCH 30 SCB |
|
 |
| |
| |
PLANT INSTALLATION : IRRIGATION PROJECT SITE, CUDAPPAH, A.P
CAPACITY : 30 M3/HR
SEW CONSTRUCTIONS LTD
HYDERABAD |
